Horizontal version runs parallel with the power supply
Vertical version runs perpendicular with the power supply

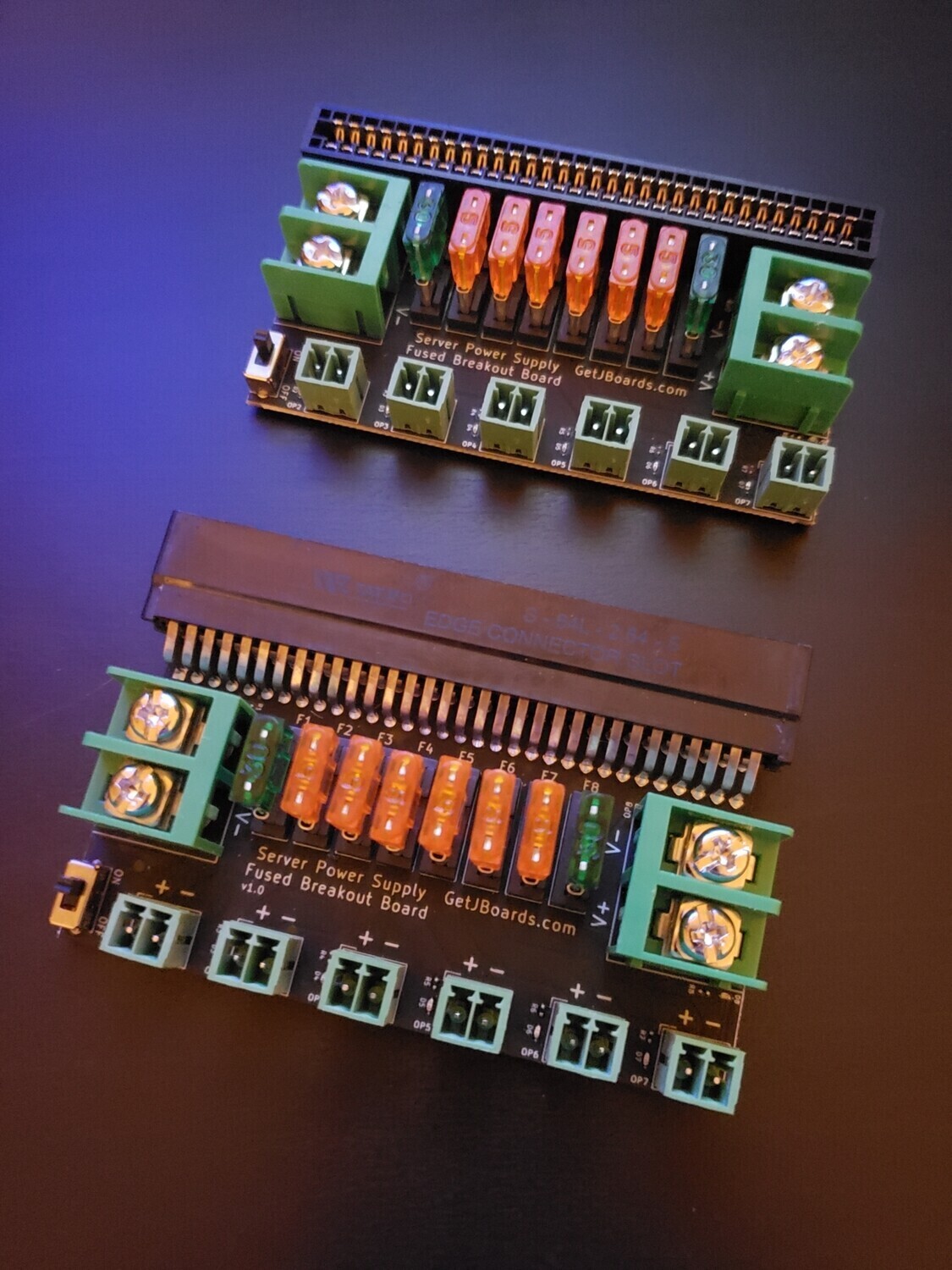

Breakout board works with the common HP common slot server power supplies. Easy connection is made via the edge slot connector. Features two 30A fused terminals and six 5A fused 2 pin power injection terminals. On/Off switch allows you to easily turn off the power supply output which comes in handy when the unit is still powered and you want to add or remove connections safely.
***Note*** Tested at 60A. Board is meant to be used with either both 30A terminals being used or one 30A terminal and the six 5A distro terminals. If both 30A terminals are used and not to full load you could use distro terminals as well if you are below limit. Any use above 60A is up to the user to verify operating conditions are satisfactory.
