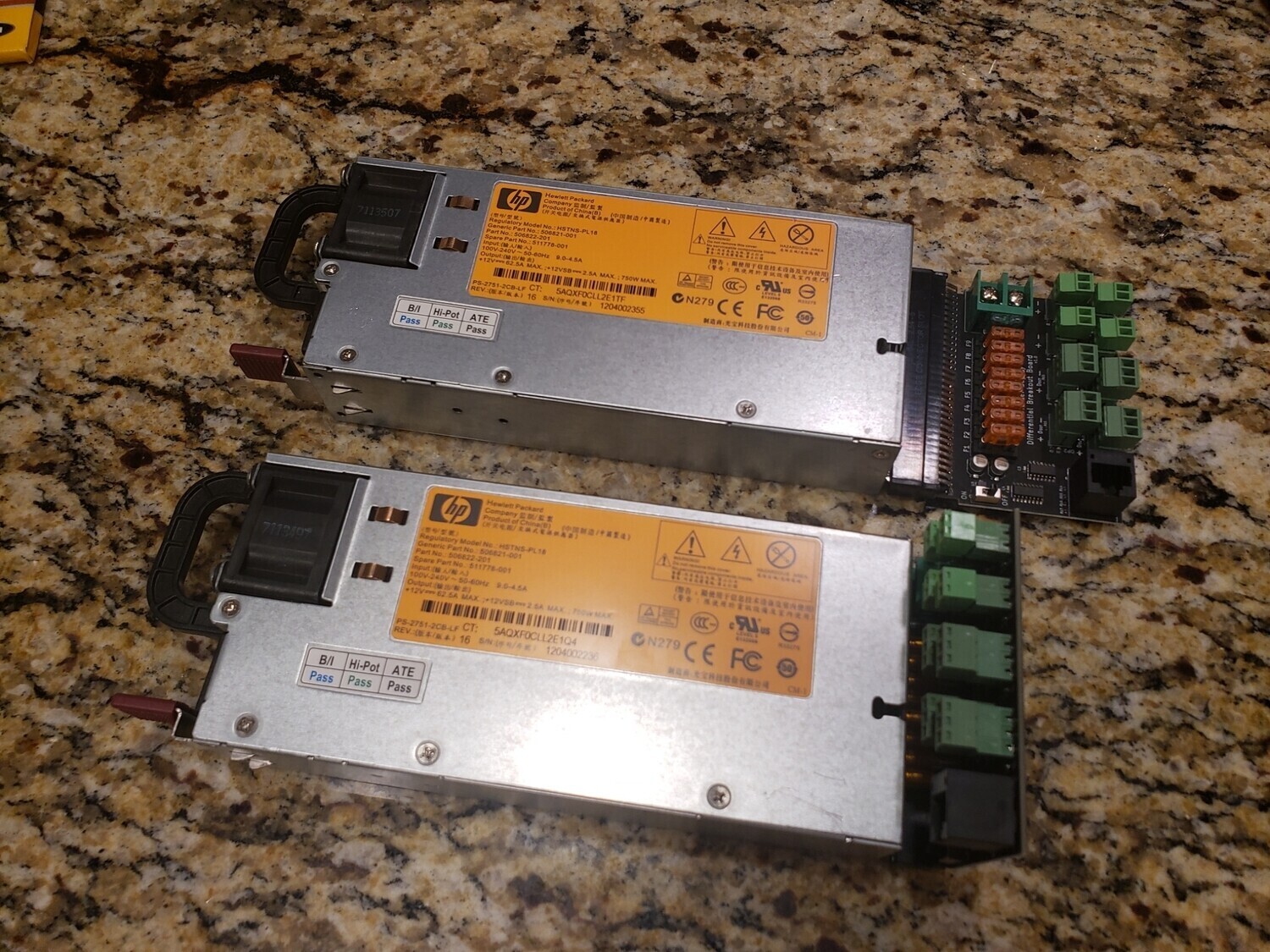

Horizontal version runs parallel with the power supply
Vertical version runs perpendicular with the power supply
Differential receiver made to connect to your HP common slot server power supplies.
- Works with common slot power supplies such as the 460w, 750w, 1200w by HP
- 2oz copper PCB construction (twice the 1oz others use on their boards) to handle the higher currents for this application
- Provides 4 5A fused differential outputs that work with my Port-To-Diff differential transmitter. Works with most other controllers that utilize differential receiver as well.
- Provides 4 5A power injection outputs.
- Provides a single 30A fused output that can be used to feed another device such as distro board or controller.
- Available in both a horizontal and vertical configuration.
NOTE*** These boards were tested at a 60A load test. While this board does have ports that could total up to 70A+ it has not been tested and would be the users responsibility to ensure that you do not try to run your power supply at an output level it can not support or such that the board exceeds temperatures and causes component issues. Recommendation would be to select to use either the large terminal output or the power injection ports and not both together.
